Spray Technology

Precision in every drop

Spray Technology

Maximum precision and a larger spray window

At Agrifac, every drop counts. That’s why we’ve developed advanced spray technologies that give you more control, greater efficiency and unmatched precision. Whether you’re working to reduce drift, improve penetration or maintain the perfect spray distance to the crop, our intelligent systems work seamlessly together to support your crops and help you achieve your farm’s goals.

No need to change your nozzles with HighTechAirPlus

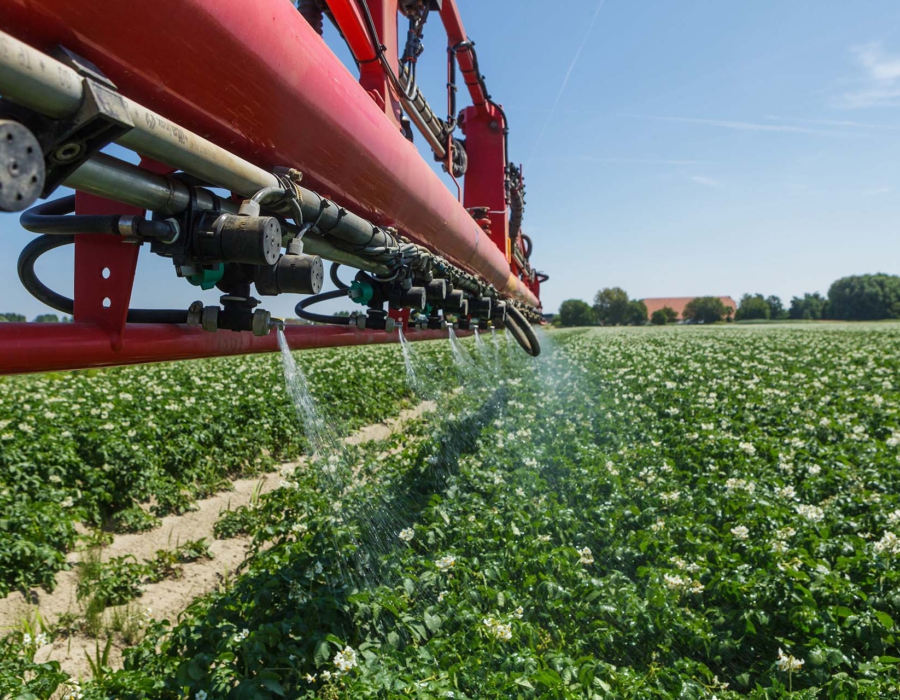

An Agrifac sprayer efficiently spraying liquid across a lush green field, enhancing crop growth.

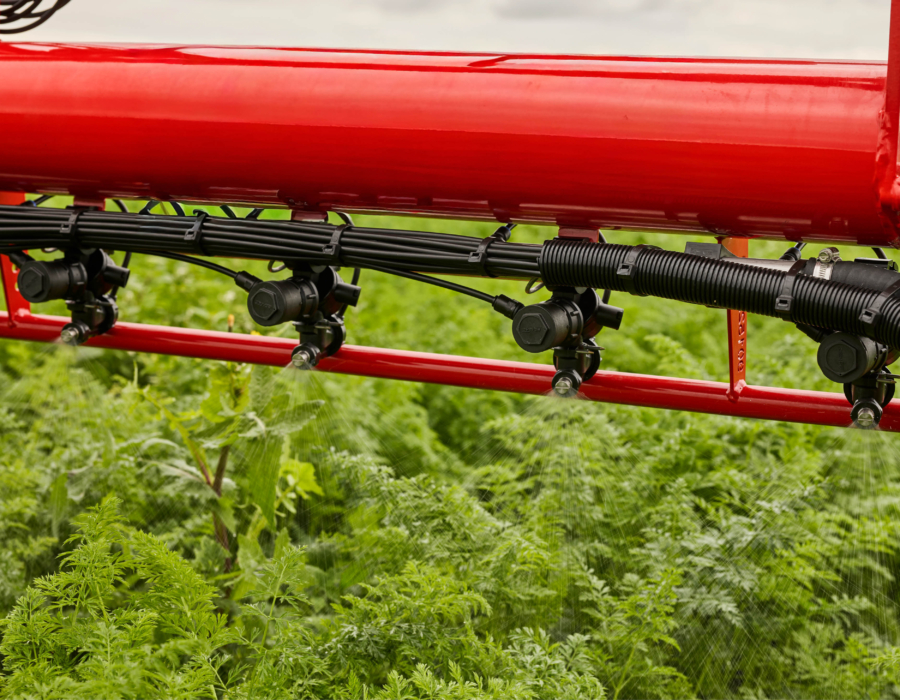

No need to change your nozzles with HighTechAirPlus

HighTechAirPlus is designed to deliver the best possible crop coverage while giving operators more working hours in all weather conditions. By combining spray liquid and air directly inside the nozzle, this advanced air liquid mixing system ensures a constant droplet size and highly accurate application, regardless of changing conditions in the field.

Wind, temperature and humidity can all affect spray quality. HighTechAirPlus is built to handle these challenges with ease. The result is a stable spray pattern, reliable coverage and optimal use of crop protection products, even when conditions are less than ideal. Best of all, it works automatically, so you don’t need to leave the cab to change the nozzles.

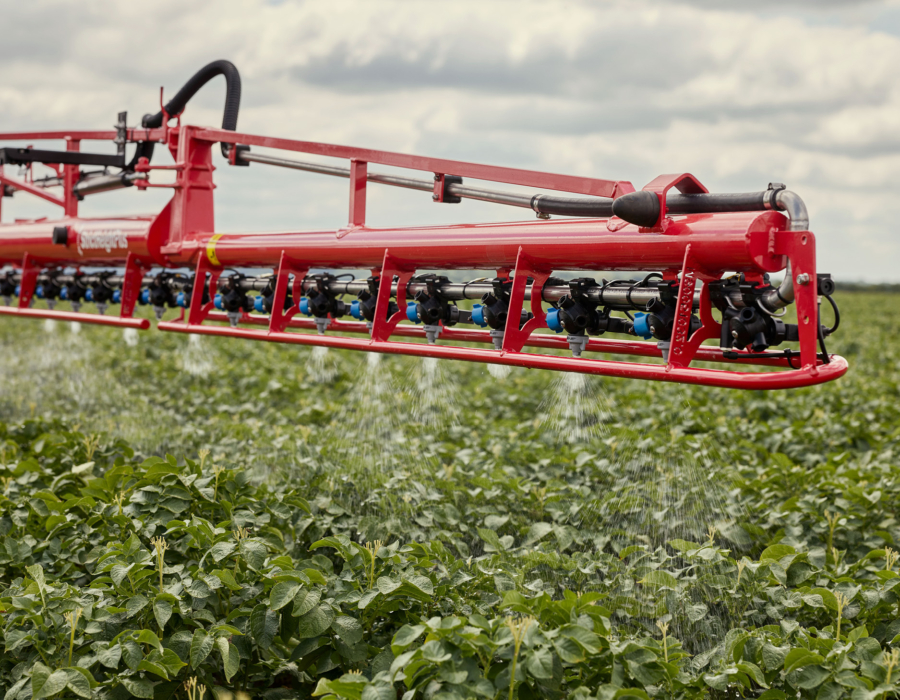

Rapid pulsing at 100hz per second with StrictSprayPlus

Rapid pulsing at 100hz per second with StrictSprayPlus

StrictSprayPlus delivers outstanding spraying results by giving you full control over spray distribution and crop coverage. Thanks to highly precise application control and consistently stable spray pressure, every critical parameter for successful spraying is guaranteed. You apply the right amount across the entire field, combined with a consistent droplet size.

StrictSprayPlus manages each nozzle individually. Every nozzle can open and close independently, allowing you to adjust spraying exactly where needed. Each individual nozzle adjusts its output based on its exact speed during turns. When turning, the nozzles on the outside of the boom move faster than those on the inside. And it controls the application rate completely independently of spray pressure. This means the selected pressure remains stable, while the application rate is adjusted through nozzle operation.

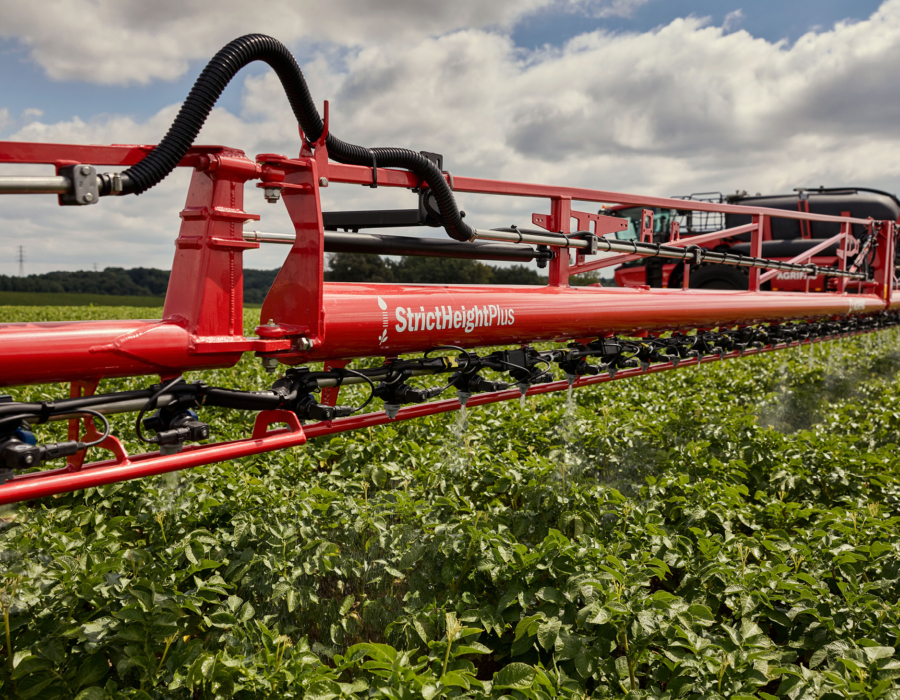

The automatic boom height control system StrictHeightPlus

The automatic boom height control system StrictHeightPlus

Consistent boom height is essential for high quality spraying. Reducing drift at lower boom heights, working with wider booms up to 55 meters and the growing importance of precision farming and spot spraying all make accurate boom control more critical than ever.

StrictHeightPlus relies on advanced radar sensors. These sensors simultaneously measure both ground and crop distance, giving the operator the flexibility to choose the most accurate reference point. Up to eight sensors can be used, each with a sensing range of up to five meters. This ensures reliable performance, even when the boom is partially lifted during headland turns, allowing for a smooth transition back into the working position.

LiquidPlus delivers targeted nutrition for optimal crop growth

LiquidPlus delivers targeted nutrition for optimal crop growth

Synthetic fertilizers can significantly boost crop development, especially for specific crop types. To apply nutrients more efficiently, effectively and economically, many farmers opt for liquid fertilizers, applied with our LiquidPlus system.

LiquidPlus equips your machine with an additional centrifugal pump, 75 mm piping, specialized nozzles and a reinforced tank designed to handle greater weight.

It allows you to spray liquids with densities up to 1.6 kg/l and application rates of up to 2.000 l/ha. For added safety, protective features include coated ironwork and a drip tray beneath the folded boom.

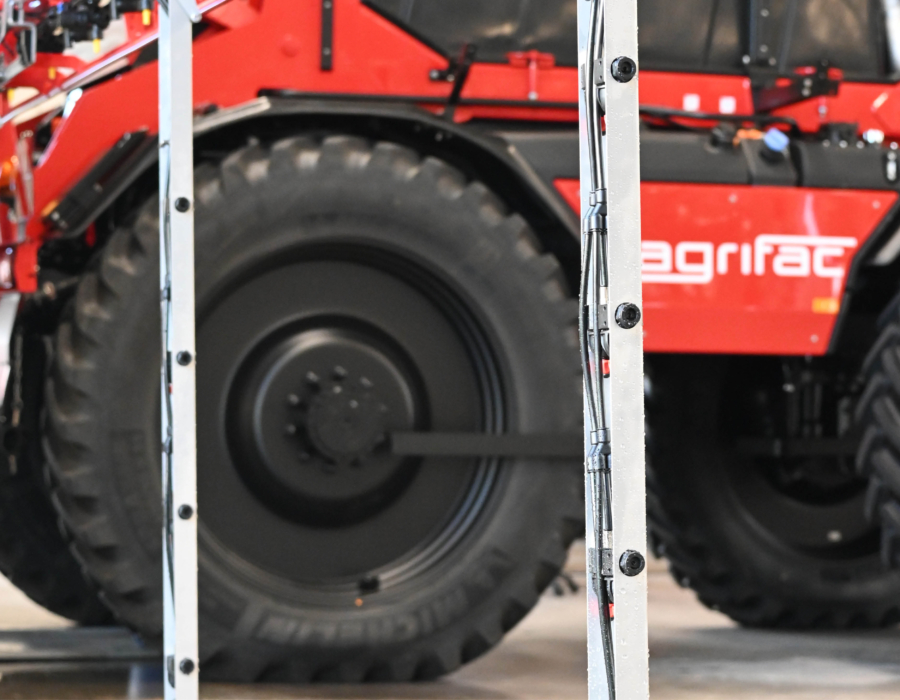

Precise and effective vertical spraying with VertiPlus

An Agrifac machine using VertiPlus for vertical spraying of crops.

Precise and effective vertical spraying with VertiPlus

Agrifac has developed a special spraying system so you can spray tall row crops such as asparagus, young trees or even sugar cane from all sides, ensuring perfect coverage. The VertiPlus system is made of stainless steel and is an add on to the standard J-boom without compromising normal spraying operation when VertiPlus is not in use.

Vertiplus comes in two different lengths: 1.20 m and 1.40 m and has 4 pairs of nozzles at 30 cm vertical spacing that spray sideways in opposite directions. At the low end two additional nozzles are positioned downwards to spray the open space between two rows of plants. The nozzles can be configured in different sections to accommodate specific needs and spray strategies.

Agrifac’s spraying technology brings together advanced engineering and genuine field experience. Every system is built to face the challenges of modern and future farming. Whether your goal is to boost crop health, improve efficiency or reduce environmental impact, our intelligent spraying technologies give you the power to perform at your best.

Discover our other technologies

The Agrifac Condor in the field showcasing how to reduce drift with its HTA solution.

HighTechAirPlus

As a leading Dutch company, Agrifac is at the forefront of addressing the critical issue of drift reduction in agriculture. In the Netherlands, where agricultural land is limited, environmental regulations are stringent and population density is high, effective drift management is essential. Regulations even prohibit spraying when wind speeds exceed 5 metres per second (approximately 11 miles per hour). Drift reduction is not just beneficial, it is crucial for ensuring compliance, protecting the environment and maintaining the effectiveness of crop protection. With our HighTechAirPlus (HTA) system, we ensure that every farmer can meet these strict requirements.

Read more
An Agrifac sprayer actively spraying liquid over a field, contributing to crop health.

StrictSprayPlus

When it comes to protecting your crops and optimizing every drop of spray, precision isn’t a luxury, it’s a necessity. That’s why Agrifac developed StrictSprayPlus, an intelligent spraying system that ensures maximum accuracy at the nozzle level, even at variable speeds and in challenging field conditions. This advanced technology automatically controls each individual nozzle, ensuring uniform coverage and minimal overlap.

Read more
A man sits at a desk, focused on a computer screen displaying a detailed task map for navigation or planning purposes.

DynamicDosePlus

DynamicDosePlus brings precision crop protection to the next level by enabling plant specific spraying. Instead of treating an entire field the same way, DynamicDosePlus applies exactly the right amount of product to each individual plant, based on reliable data and intelligent application maps. This results in healthier crops, reduced input use and higher overall efficiency.

Read more
An Agrifac sprayer with camera spot spray system mounted on the boom, showcasing agricultural technology and efficiency.

AiCPlus

Agrifac’s AI-powered camera system, AiCPlus, is revolutionising crop care by combining advanced imaging with precision application. Designed to detect and target weeds with exceptional accuracy, AiCPlus treats only where needed, reducing inputs and promoting healthier crops. Operating in real time and under all light conditions, this intelligent system empowers farmers to make smarter, more sustainable decisions.

Read more
A close-up view of a red Agrifac sprayer featuring a prominent sticker on its body, showcasing a slogan.

StrictHeightPlus

StrictHeightPlus ensures top spray quality by precisely maintaining the optimal distance from the crop, at all times. This fully integrated boom height control system continuously holds the set height using four wide-angle sensors mounted on the boom, delivering accurate and reliable crop measurements in real time.

Read more
A close-up view of a red Agrifac sprayer featuring a prominent sticker on its body, showcasing a slogan.

FastFoldPlus

With FastFoldPlus, folding and unfolding the spray boom is faster and easier than ever. Thanks to integrated joystick control, the entire process is just one button away. Advanced technology not only accelerates the folding mechanism but also enhances safety, reducing wear, extending system lifespan and minimizing the number of steps required.

Read more
An Agrifac sprayer showcasing its option of spraying liquid fertilizer.

LiquidPlus

The Agrifac LiquidPlus system enables the precise application of liquid fertilizers directly at the right spot and rate, helping farmers maximize nutrient efficiency while minimizing waste. This requires a dedicated boom adjustment, featuring specialized nozzles and separate lines to ensure safe, accurate and corrosion-free application.

Read more
The Agrifac Condor showcasing the vertical spraying solution in the field.

VertiPlus

Agrifac’s detachable VertiPlus system is designed to deliver precise and reliable coverage for special crops. From asparagus and young trees to sugar cane, VertiPlus allows you to spray tall row crops effectively from all sides. By targeting the crop vertically, it ensures thorough penetration and uniform coverage, even in dense or challenging crop structures.

Read more

J-boom

The J-boom is Agrifac’s trusted standard spray boom, engineered to deliver top performance in all conditions. Its robust yet compact design ensures long-lasting durability and exceptional stability, even at high speeds and with wider boom widths. As standard on every Agrifac machine, the J-boom gives farmers the confidence of precise, consistent spraying, season after season.

Read more
An Agrifac sprayer with AirFlow boom, spraying a green field, showcasing agricultural action and drift reduction.

AirFlowPlus

AirFlowPlus is Agrifac’s high-performance air-assisted spray boom, engineered to elevate your spraying precision. By combining targeted airflow with advanced boom technology, AirFlowPlus delivers unmatched canopy penetration and significantly reduces spray drift, even in challenging weather conditions.

Read more
A close-up view of a red Agrifac sprayer featuring a prominent sticker on its body, showcasing a slogan.

PurifyPlus

To achieve optimal spray results, it’s essential to start with a clean tank. PurifyPlus is Agrifac’s intelligent tank cleaning system, designed to thoroughly clean your sprayer with minimal effort. With just a few taps on the EcoTronicPlus touchscreen, you can activate a fully automatic cleaning cycle that uses minimal water while delivering maximum cleanliness. Whether you're switching between crops or products, PurifyPlus helps prevent contamination and safeguards your yields.

Read more
