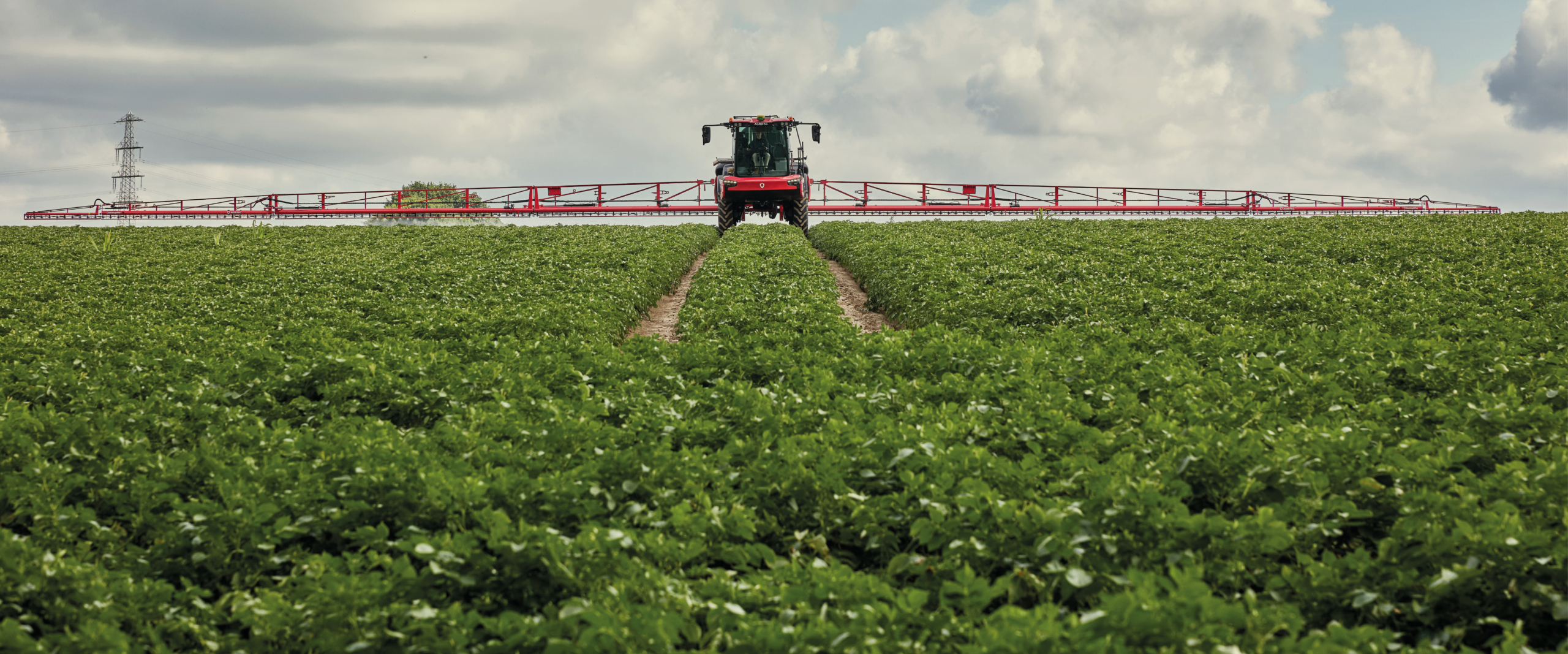

Agrifac sprayer spraying in a green field.

Standard

Core technologies

Standard

The core technologies on every Agrifac sprayer

A sprayer is only as good as its foundation. At Agrifac, we believe precision and efficiency begin with stability of the machine. That’s why every Agrifac sprayer is built on a rock-solid base: the StabiloPlus chassis. Its unique design ensures that, no matter the terrain, your sprayer stays level, your boom remains steady and your application stays precise. But that’s just the beginning. Every Agrifac machine comes equipped with a set of core technologies that drive performance and reliability: GreenFlowPlus, BalancePlus, EcoTronicPlus and StabiloPlus.

StablioPlus is the most stable basis for your sprayer

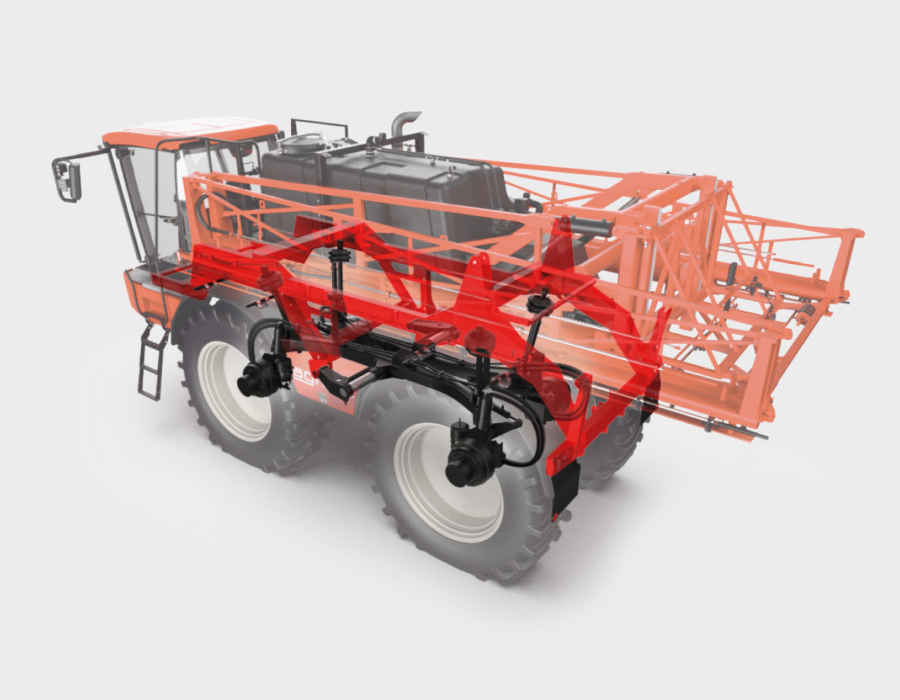

The StabiloPlus chassis on the Agrifac sprayer.

StablioPlus is the most stable basis for your sprayer

For more than 30 years, Agrifac’s unique StabiloPlus chassis has set the standard for stability in self-propelled sprayers. This robust foundation distributes weight evenly across all four wheels, ensuring maximum stability, optimal traction and minimal ground pressure.

Thanks to minimal spray boom swaying, liquids are distributed evenly, contributing to consistent application and improved results. The system delivers optimal comfort in every situation. Whether on the road or in the field and in both wet and dry conditions, the operator benefits from a smooth and controlled ride.

The undercarriage has been developed specifically for self-propelled sprayers, ensuring perfect integration with the machine. As standard, it features stepless hydraulic track width adjustment, allowing the machine to be easily adapted to different crops and working situations.

Optimal use of water and inputs

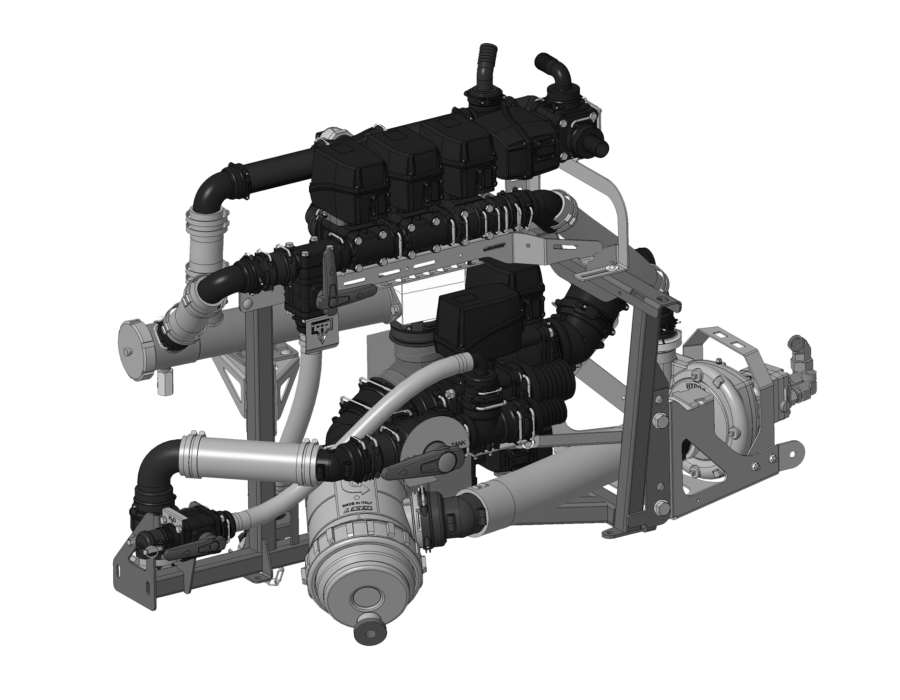

GreenFlowPlus system illustrated in a technical graphic.

Optimal use of water and inputs

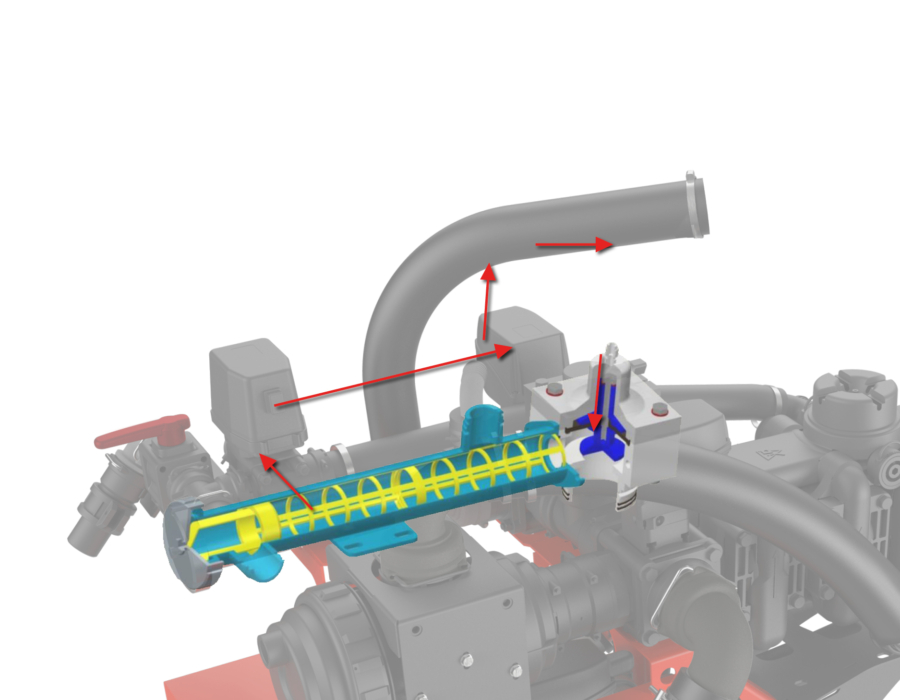

GreenFlowPlus delivers optimal use of water and inputs through a compact water system engineered for maximum flow and minimal residual liquid volume.

A fast responding pneumatic pressure regulator keeps spray pressure constant, even during rapid changes in spray width caused by nozzle shut off or spot spraying, preventing pressure drops and spikes. Full boom circulation keeps the spray liquid moving all the way to the nozzles, helping prevent deposits and spray triangles and allowing you to start spraying immediately without compromising quality.

The tank shape and suction point are designed to leave virtually no liquid behind, reducing waste and making the system quick and easy to clean. Combined with a self-cleaning pressure filter, a flow optimized pump system and short pipework, GreenFlowPlus maintains a stable pressure, keeps the filter clean and delivers at accurate level. Even distribution of spray liquid, even at high application rates up to 500 liter per minute.

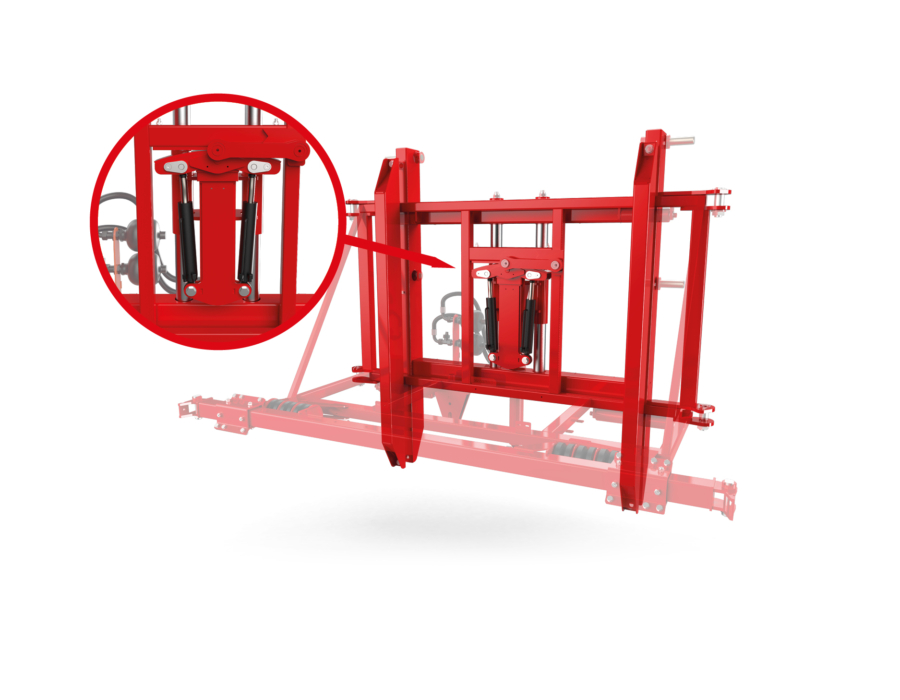

BalancePlus provides the ultimate boom balance

BalancePlus system illustrated in a technical graphic.

BalancePlus provides the ultimate boom balance

Have you ever wondered why a tightrope walker only needs a pole to stay balanced? It’s because they rely on natural forces like gravity. The same principle applies to Agrifac booms.

Engineered for perfect natural balance, the J-boom and AirFlowPlus boom are mounted on a unique moon-shaped suspension that provides stability in every situation. That’s what we call BalancePlus. Even in the toughest field conditions, BalancePlus keeps the boom perfectly balanced, delivering precision where it matters most. Thanks to its rounded, stable and robust design, BalancePlus offers exceptional build quality, long-lasting durability and consistently accurate spraying performance.

The EcoTronicPlus is the most user-friendly control system

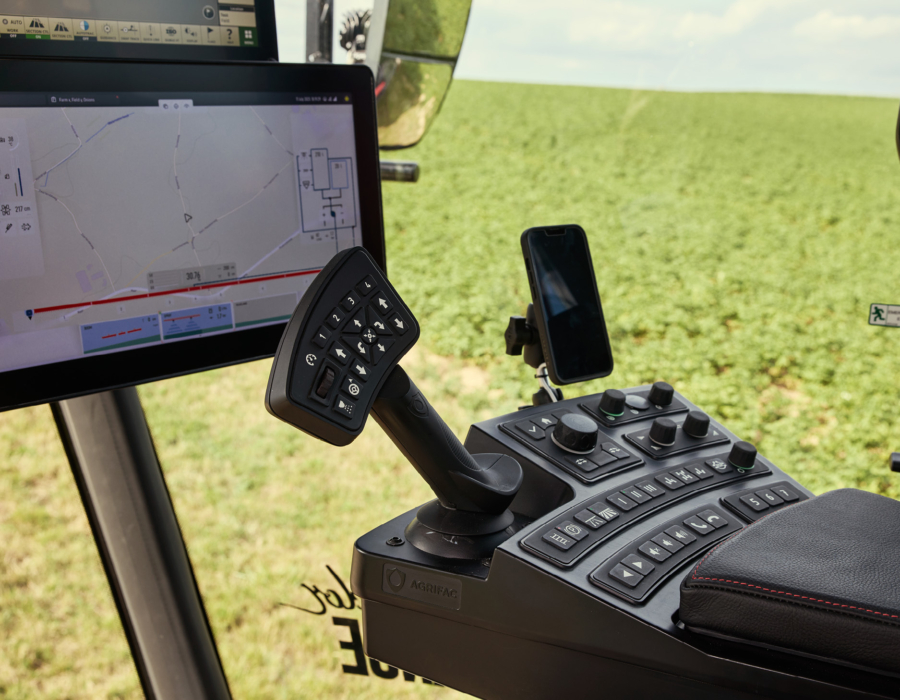

Close up of the EcoTronicPlus screen.

The EcoTronicPlus is the most user-friendly control system

The EcoTronicPlus delivers brilliantly simple control by putting everything the operator needs right at their fingertips.

The fully redesigned EcoTronicPlus combines clarity, speed and confidence in one powerful control system, offering a high performance 18.5 inch full HD touchscreen with exceptional brightness, fast processing and intuitive navigation.

Operators can seamlessly switch between touchscreen, rotary command or joystick control to manage spraying, boom functions, cruise control and headland operations with precision and ease. Every function is logically laid out for quick access, showing all key machine processes and indicators at a glance.

Discover our other technologies

Close up of the HighTechAirPlus nozzles.

HighTechAirPlus

As a leading Dutch company, Agrifac is at the forefront of addressing the critical issue of drift reduction in agriculture. In the Netherlands, where agricultural land is limited, environmental regulations are stringent and population density is high, effective drift management is essential. Regulations even prohibit spraying when wind speeds exceed 5 meters per second (approximately 11 miles per hour).

Read more
Side view of the StrictSprayPlus operating in the field.

StrictSprayPlus

StrictSprayPlus delivers absolute control over spray distribution and crop coverage, so every drop hits the right spot. By combining individual nozzle control with a consistently stable spray pressure, Agrifac ensures one clear result: the right amount of product, everywhere in the field, every time. This intelligent spraying system makes every droplet count. It boosts efficacy, minimizes overlap, reduces waste and helps growers achieve the best possible crop protection results.

Read more
A man sits at a desk, focused on a computer screen displaying a detailed task map for navigation or planning purposes.

DynamicDosePlus

DynamicDosePlus brings precise crop protection to the next level by enabling plant specific spraying. Instead of treating an entire field the same way, DynamicDosePlus applies exactly the right amount of product to each individual plant, based on reliable data and intelligent application maps. This results in healthier crops, reduced input use and higher overall efficiency.

Read more
Side view of the AICPlus camera

AiCPlus

Agrifac’s AI-powered camera system, AiCPlus, is revolutionising crop care by combining advanced image processing with precision application. Designed to detect and target weeds with exceptional accuracy, AiCPlus treats only where needed, reducing inputs and promoting healthier crops. Operating in real time and under all light conditions, this intelligent system empowers farmers to make smarter, more sustainable decisions.

Read more
Close up of the StrictHeightPlus system.

StrictHeightPlus

Perfect spraying starts with the right distance to the crop. StrictHeightPlus keeps the spray boom exactly where it needs to be, stable, consistent and precise. As boom widths increase and boom heights decrease to reduce drift, accurate boom height control becomes more critical than ever. StrictHeightPlus ensures every droplet reaches its target, even at high speeds, on rolling terrain or during turns.

Read more
Folding boom of the Vanguard 67 sprayer.

FastFoldPlus

With FastFoldPlus, Agrifac takes boom folding and unfolding to the next level. The system is designed to be faster, safer and easier than ever before, so you spend less time waiting and more time spraying.

Read more
Close up of the VertiPlus droplegs.

VertiPlus

Agrifac’s detachable VertiPlus system is designed to deliver precise and reliable coverage for special crops. From asparagus and young trees to sugar cane, VertiPlus allows you to spray tall row crops effectively from all sides. By targeting the crop vertically, it ensures thorough penetration and uniform coverage, even in dense or challenging crop structures.

Read more
Close up of the J-boom.

J-boom

The J-boom is Agrifac’s proven standard spray boom, built for serious performance in every condition. Its robust, compact design delivers long lasting durability and rock solid stability, even at higher speeds and wider boom widths. With standard 25 centimeter nozzle spacing and boom widths from 24 to 55 meters, it’s engineered to keep your application accurate, efficient and dependable in the field.

Read more
An Agrifac sprayer with AirFlow boom, spraying a green field, showcasing agricultural action and drift reduction.

AirFlowPlus

AirFlowPlus is Agrifac’s air-assisted spray boom, engineered to elevate your spraying precision. By combining targeted airflow with advanced boom technology, AirFlowPlus delivers unmatched canopy penetration and significantly reduces spray drift, even in challenging weather conditions.

Read more
A close up view of the inside of the Agrifac cab with different buttons and a screen.

PurifyPlus

With PurifyPlus, cleaning your sprayer is no longer a manual task. It is a fully automated process. Spray booms, nozzles, pipes (GreenFlowPlus) and the tank are cleaned quickly and thoroughly at the touch of a button. Simply select PurifyPlus on the EcoTronicPlus screen, choose the appropriate program and let the system do the work. The selected cleaning cycle runs automatically, delivering maximum convenience and a consistently clean result every time.

Read more
