MountainMaster
Mastering hilly terrain with confidence
Farming on sloped terrain demands maximum control, stability and precision. MountainMaster is designed to deliver exactly that. By actively compensating for uneven ground, this solution keeps the machine level at all times, even on steep hills. The result is safer operation, improved comfort for the operator and optimal crop protection.
Full power and traction on steep slopes
Full power and traction on steep slopes
MountainMaster is an option for the Clearance undercarriage and offers the same ground clearance from 130 cm up to 200 cm.
Each wheel hub is equipped with individually controllable cylinders, allowing the machine to fully compensate slopes up to 20 percent in the driving direction and cross slopes up to 25 percent. This ensures excellent stability and a balanced weight distribution across the machine, improving traction when driving uphill. For even more traction, a different gear ratio can be selected, delivering up to 20 percent more torque to the wheels.
Thanks to its smart leveling technology, weight is evenly distributed across all wheels. This provides maximum traction in challenging conditions and ensures consistent spray coverage across the entire field. The boom automatically adapts to the crop, staying at the correct height for precise application.

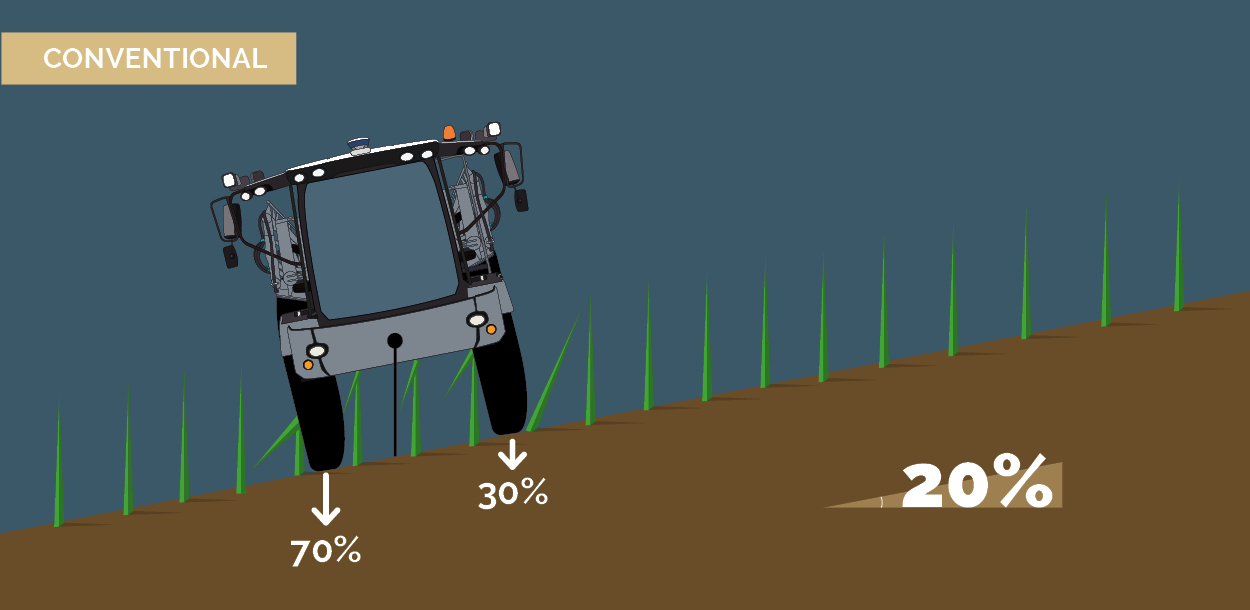

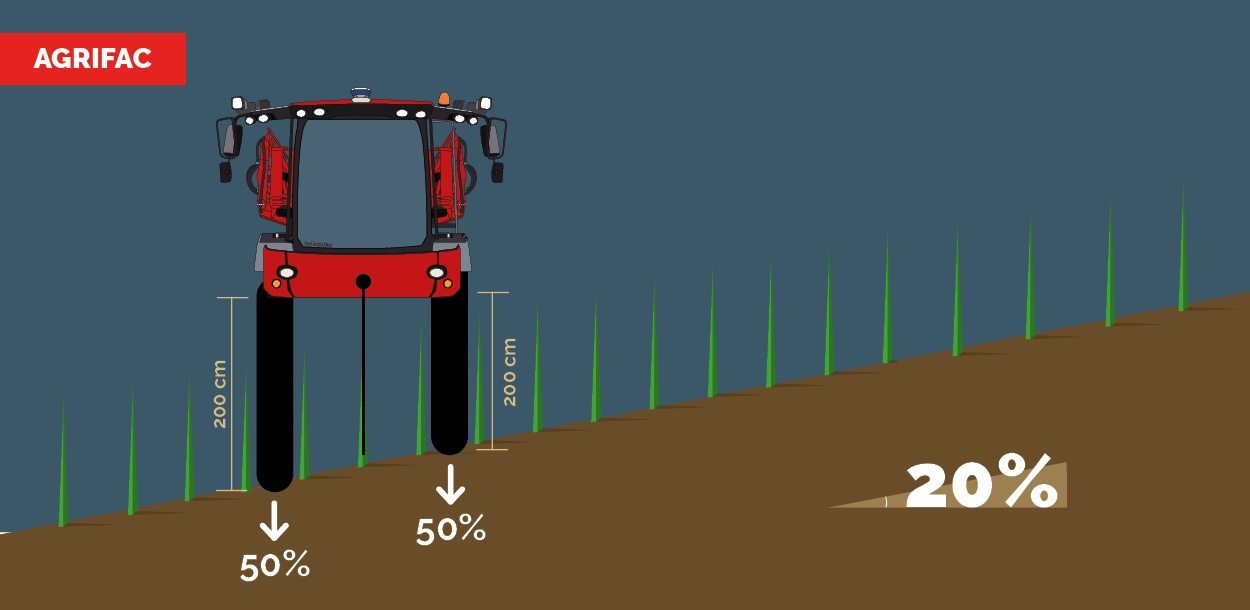

Conventional sprayer vs. MountainMaster
Conventional sprayer vs. MountainMaster
Because the machine remains level on slopes, wheel pressure on the crop is reduced. This minimizes crop damage and improves overall field results, even in difficult terrain.
MountainMaster is built for confident spraying on sloped terrain, delivering up to 20 percent slope compensation while keeping the machine level for maximum stability and operator comfort. With ground clearance up to 200 cm, it combines crop safety with accessibility in taller crops. Thanks to balanced weight distribution across all wheels, traction is maximized even when driving uphill, and the boom automatically adapts to the crop to maintain the right height for consistent, accurate coverage.
The result is a smoother ride, optimal protection on uneven ground, less crop damage, and better overall crop protection where conditions are most demanding.
MountainMaster is available as an option on the Condor, Condor Vanguard, Vanguard 55 and Vanguard 67 sprayers.
